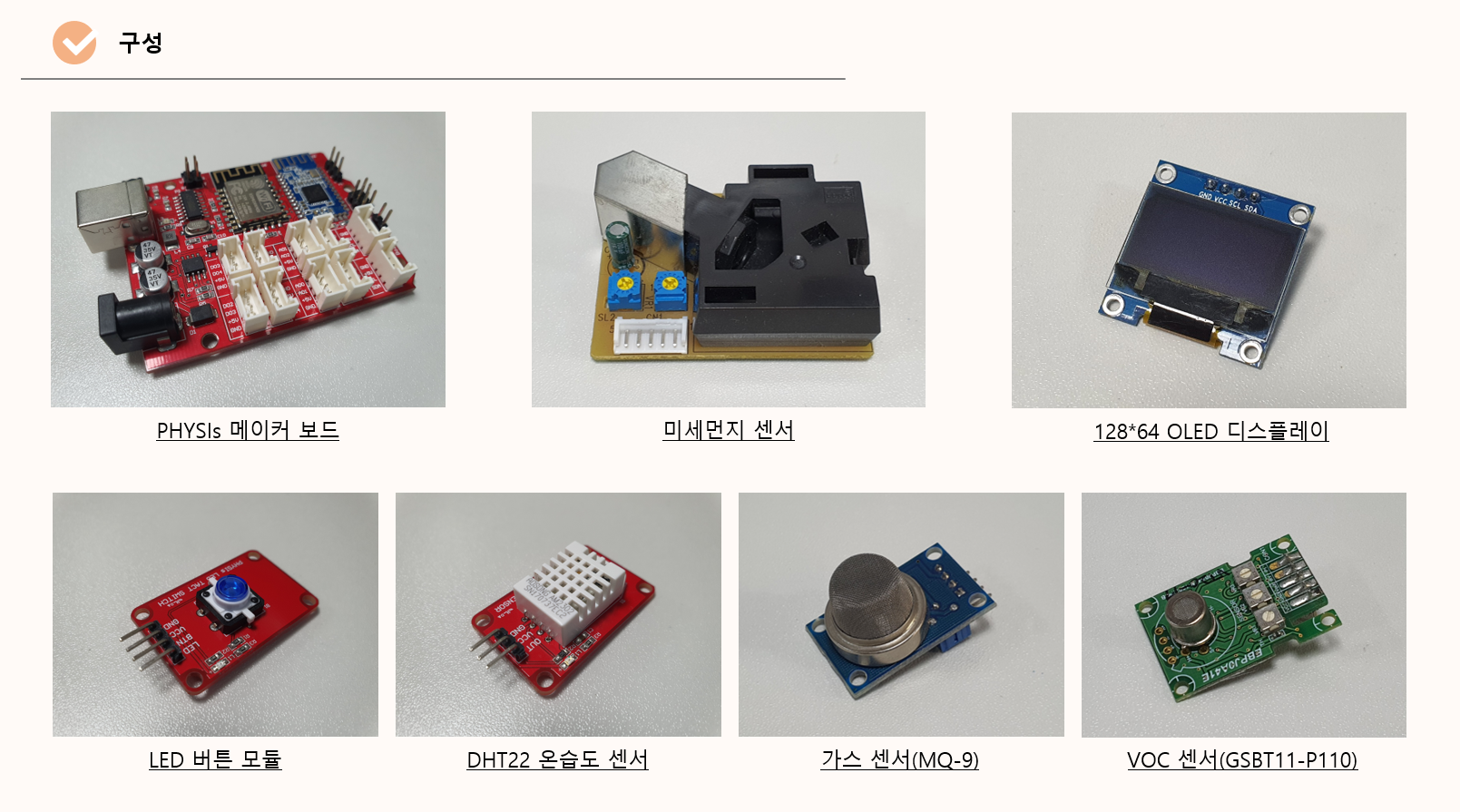

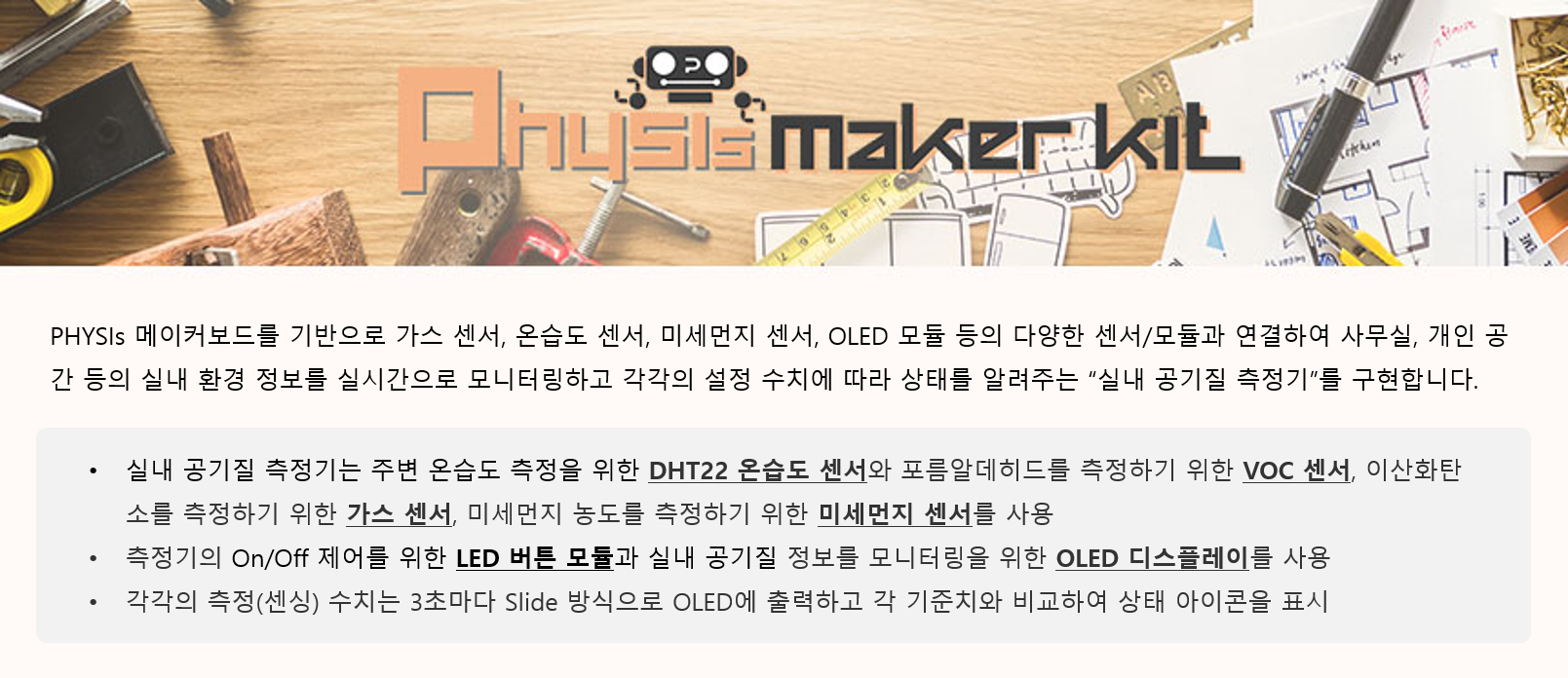

#include <DHT.h>                      // 온습도 센서 라이브러리 사용
#include <U8glib.h>                   // OLED 디스플레이 라이브러리 사용

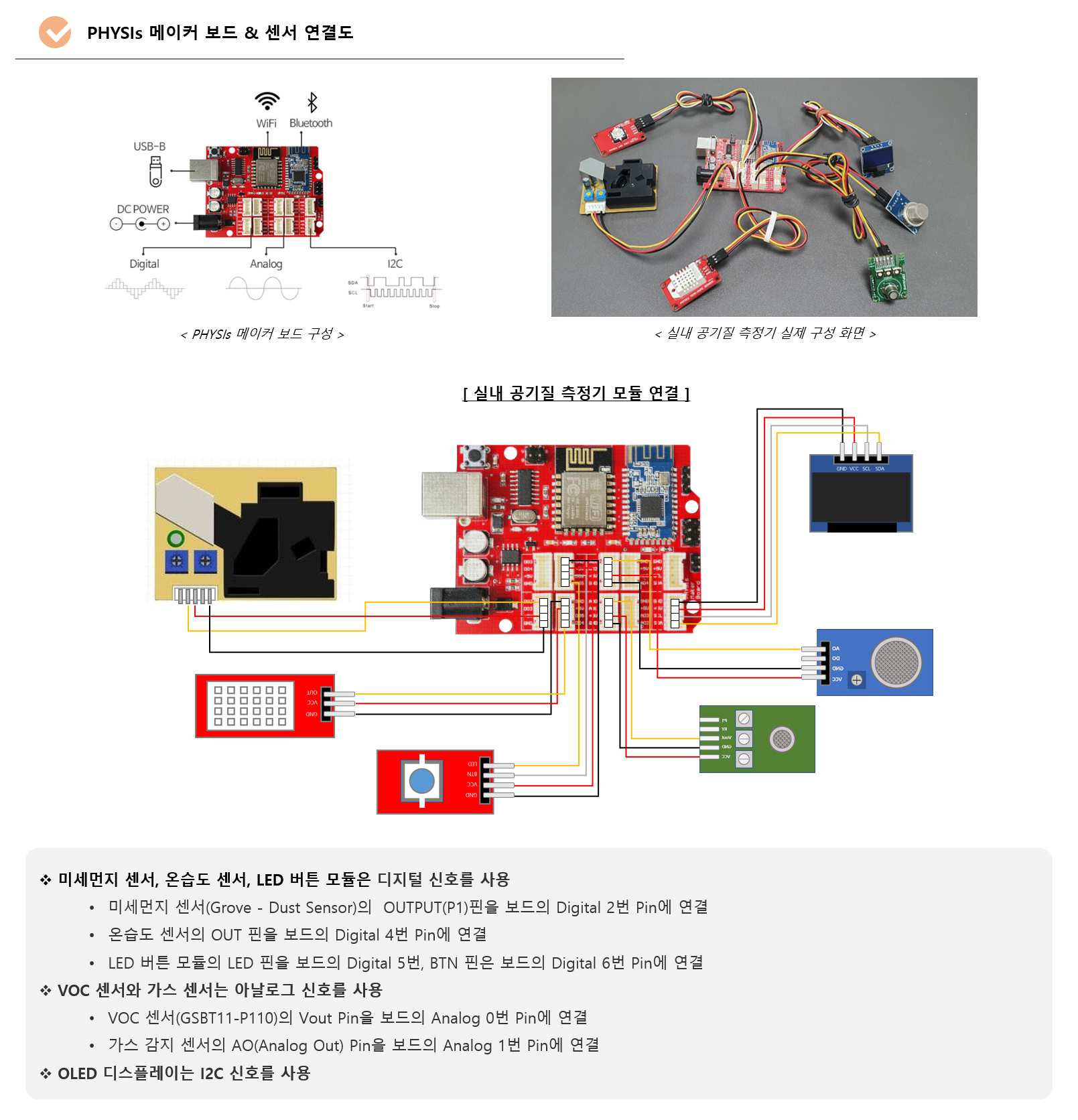

#define DHT_PIN         4             // 온습도 센서 연결 Pin 번호
#define DHT_TYPE        DHT22         // 온습도 센서 타입
#define VOC_PIN         A0            // VOC 센서 연결 Pin 번호
#define CO2_PIN         A1            // Co2 센서 연결 Pin 번호
#define DUST_PIN        2             // 미세먼지 연결 Pin 번호
#define BTN_PIN         6             // BTN 연결 Pin 번호
#define BTN_LED_PIN     5             // BTN LED연결 Pin 번호

#define CHANGE_COUNT     3

// 객체 선언
DHT dht(DHT_PIN, DHT_TYPE);
U8GLIB_SSD1306_128X64 u8g(U8G_I2C_OPT_DEV_0 | U8G_I2C_OPT_NO_ACK | U8G_I2C_OPT_FAST);

// OLED Bitmap 아이콘(40*40) 배열
const unsigned char badIcon [] PROGMEM = {
  0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000xff0xff0xff0x800x070xff0xff0xff0xe00x0f0xff,
  0xff0xff0xf00x0c0x000x000x000x380x1c0x000x000x000x180x180x000x00,
  0x000x180x180x000x000x000x180x180x000x000x000x180x180x000x000x00,
  0x180x180x000x000x000x180x180x000x000x000x180x180x0e0x000x700x18,
  0x180x1f0x000xf80x180x180x1f0x000xf80x180x180x1f0x000xf80x180x18,
  0x0e0x000x700x180x180x000x000x000x180x180x000x000x000x180x180x00,
  0x000x000x180x180x000x000x000x180x180x000x3c0x000x180x180x070xff,
  0xe00x180x180x0f0xff0xf00x180x180x180x000x080x180x180x000x000x00,
  0x180x180x000x000x000x180x180x000x000x000x180x1c0x000x000x000x18,
  0x0c0x000x000x000x380x0f0x000x000x000x700x070xff0xff0xff0xe00x01,
  0xff0xff0xff0x800x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000x000x000x00,
};

const unsigned char goodIcon [] PROGMEM = {
  0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000xff0xff0xff0x800x070xff0xff0xff0xe00x0f0xff,
  0xff0xff0xf00x0c0x000x000x000x380x1c0x000x000x000x180x180x000x00,
  0x000x180x180x000x000x000x180x180x000x000x000x180x180x000x000x00,
  0x180x180x000x000x000x180x180x000x000x000x180x180x0e0x000x700x18,
  0x180x1f0x000xf80x180x180x1f0x000xf80x180x180x1f0x000xf80x180x18,
  0x0e0x000x700x180x180x000x000x000x180x180x000x000x000x180x180x00,
  0x000x000x180x180x000x000x000x180x180x000x000x000x180x180x180x00,
  0x180x180x180x0f0xe70xf00x180x180x030xff0xc00x180x180x000x3c0x00,
  0x180x180x000x000x000x180x180x000x000x000x180x1c0x000x000x000x18,
  0x0c0x000x000x000x380x0f0x000x000x000x700x070xff0xff0xff0xe00x01,
  0xff0xff0xff0x800x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000x000x000x00
};


float gasRo = 0;                              // Co2 센서 초기 저항 값
unsigned long dustStartTime = 0;              // 미세먼지 측정 시작 시간
unsigned long sampletimeMS = 30000;           // 미세먼지 샘플링 설정 시간
unsigned long lowPulseOccupancy = 0;          // 미세먼지 Pulse 합계

float humidity, temperature;                  // 온습도 값
float dustugm3;                               // 미세먼지 농도값
float vocppm;                                 // Voc 농도값
float co2ppm;                                 // Co2 농도값
bool enable = true;                           // 디바이스 On/Off 상태 값
int changeCnt;                                // 디스플레이 전환 카운트
int slideNum;                                 // 슬라이드 번호
bool pleasable = false;                       // 기준 수치 적정성


void setup() {
  Serial.begin(115200);
  dht.begin();                                // 온습도 센서 활성화
  u8g.begin();                                // OLED 모듈 활성화

  pinMode(BTN_PIN, INPUT);                    // 버튼 모듈 Pin 모드 설정
  pinMode(BTN_LED_PIN, OUTPUT);
  pinMode(DUST_PIN, INPUT);                   // 미세먼지 센서 Pin 모드 설정

  initConfig();                               // 초기 환경 설정
  clearOLED();                                // OLED 지우기

  Serial.println("## Start Air Quality Monitoring ##");
}

void loop() {
  btnEvent();                                               // 버튼 모듈 클릭 이벤트 함수 호출

  if (enable) {                                             // 디바이스 On 전환 시,
    measureVOC();                                                 // VOC 수치 측정
    measureCo2();                                                 // Co2 수치 측정
    measureDust();                                                // 미세먼지 수치 측정
    measureDHT();                                                 // 온도, 습도 수치 측정

    changeCnt--;                                                  // 전환 카운트 감소
    if (changeCnt <= 0) {                                           // 카운트 0 도달 시,
      slideNum = slideNum >= 5 ? 1 : slideNum + 1;                  // 슬라이드 번호 지정
      showOLED();                                                   // OLED 정보 출력
      changeCnt = CHANGE_COUNT;                                     // 전환 카운트 초기화
    }
    delay(1000);
  }
  delay(50);
}


// OLED 종료 함수 (기존 출력 정보 지우기)
void clearOLED() {
  u8g.firstPage();
  do {
    // Null
  } while ( u8g.nextPage() );
}

// OLED 출력 함수
void showOLED() {
  u8g.firstPage();
  do {
    switch (slideNum) {
      case 1:             // 슬라이드 번호 1 = 온도 정보 출력
        pleasable = temperature > 16 && temperature < 28;   // 측정 온도 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Temp");                        // 온도 정보 출력
        u8g.drawStr(6454, String(temperature).c_str());
        break;
      case 2:             // 슬라이드 번호 2 = 습도 정보 출력
        pleasable = humidity > 30 && humidity < 70;         // 측정 습도 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Humi");                        // 습도 정보 출력
        u8g.drawStr(6454, String(humidity).c_str());
        break;
      case 3:             // 슬라이드 번호 3 = 미세먼지 정보 출력
        pleasable = dustugm3 < 35;                          // 측정 미세먼지 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Dust");                        // 미세먼지 정보 출력
        u8g.drawStr(6454, String(dustugm3).c_str());
        break;
      case 4:             // 슬라이드 번호 4 = VOC 정보 출력
        pleasable = vocppm < 6;                            // 측정 VOC 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Voc");                         // VOC 정보 출력
        u8g.drawStr(6454, String(vocppm).c_str());
        break;
      case 5:             // 슬라이드 번호 5 = Co2 정보 출력
        pleasable = co2ppm < 20;                            // 측정 CO2 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Co2");                         // Co2 정보 출력
        u8g.drawStr(6454, String(co2ppm).c_str());
        break;
    }
    u8g.drawBitmapP(812540, pleasable ? goodIcon : badIcon);      // 기준 수치 적정성에 따른 상태 아이콘 출력
  } while ( u8g.nextPage() );
}

// 버튼 클릭 이벤트 함수
void btnEvent() {
  if (digitalRead(BTN_PIN)) {                   // 버튼 클릭 시,
    while (digitalRead(BTN_PIN)) {
      delay(100);
    }
    enable = !enable;                           // 동작 활성화 상태 전환
    if (enable) {                                   // 동작 활성화 시,
      initConfig();                                     // 초기 환경 설정
    } else {                                        // 동작 비활성화 시,
      clearOLED();                                      // OLED 출력 종료
    }
    digitalWrite(BTN_LED_PIN, enable);          // 동작 상태에 따라 버튼 LED 상태 설정
  }
}


// 초기 환경 설정 함수
void initConfig() {
  dustStartTime = millis();                   // 미세먼지 측정 시작 시간 설정
  changeCnt = CHANGE_COUNT;                   // 전환 카운트 갱신(초기화)
  slideNum = 0;                               // 슬라이드 시작 번호 초기화
  lowPulseOccupancy = 0;                      // 미세먼지 Pulse 합계 초기화
}


// 온습도 측정 함수
void measureDHT() {
  humidity = dht.readHumidity();                  // 습도 측정
  temperature = dht.readTemperature();            // 온도 측정

  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("DHT sensor error!");
    return;
  }
  Serial.print("DHT : (Temp) ");
  Serial.print(temperature);
  Serial.print("\t (Humi) ");
  Serial.println(humidity);
}


// 미세먼지 측정 함수
void measureDust() {
  // 미세먼지 센서(Grove-Dust Sensor) 측정 참조 - https://wiki.seeedstudio.com/Grove-Dust_Sensor/
  lowPulseOccupancy += pulseIn(DUST_PIN, LOW);
  if (millis() - dustStartTime >= sampletimeMS) {
    float ratio = lowPulseOccupancy / (sampletimeMS * 10.0);
    float concentration = 1.1 * pow(ratio, 3- 3.8 * pow(ratio, 2+ 520 * ratio + 0.62;
    dustugm3 = concentration * 100 / 1300;
    Serial.print("Dust(ug/m3) : ");
    Serial.println(dustugm3);
    lowPulseOccupancy = 0;
    dustStartTime = millis();
  }
}


// CO2 측정 함수
void measureCo2() {
  // 가스 센서 측정 참조 - https://thestempedia.com/tutorials/interfacing-mq-2-gas-sensor-with-evive/
  float vOut = analogRead(CO2_PIN) * 5.0 / 1023.0;
  float gasRs = (5.0 - vOut) / vOut;

  if (gasRo == 0) {
    gasRo = gasRs / 9.9;
    Serial.print("Gas Ro : ");
    Serial.print(gasRo);
    Serial.println(" kohm");
  } else {
    float ratio = gasRs / gasRo;
    co2ppm = pow(10, (log(ratio) - 1.51/ -0.34);
    Serial.print("(Co2) Vout : ");
    Serial.print(vOut);
    Serial.print("\t ppm : ");
    Serial.println(co2ppm);
  }
}


// VOC 측정 함수
void measureVOC() {
  // VOC 센서 측정 참조 - https://datasheetspdf.com/pdf/1418387/Ogam/GSBT11/1
  float vOut = analogRead(VOC_PIN) * 5.0 / 1023.0;
  vocppm = pow(10-0.867 + 1.274 * vOut);
  Serial.print("(Formaldehyde) Vout : ");
  Serial.print(vOut);
  Serial.print("\t ppm : ");
  Serial.println(vocppm);
}
