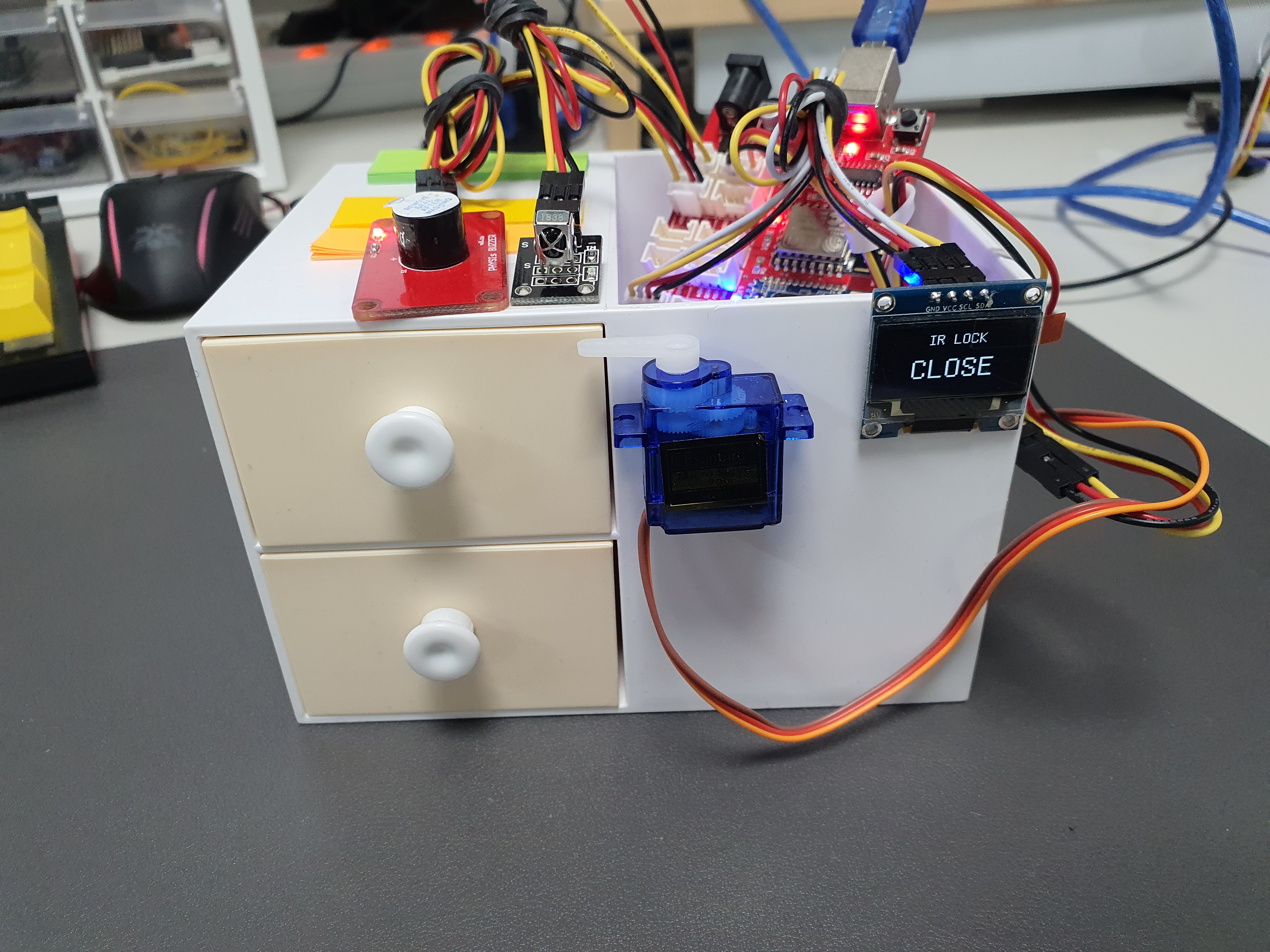

#include <IRremote.h>                 // IR Remote (ver 2.5.0) 라이브러리 사용
#include <Servo.h>                    // Servo 라이브러리 사용
#include <U8glib.h>                   // OLED 디스플레이 라이브러리 사용

#define IR_PIN      2                 // IR 수신 센서 Pin 번호
#define SERVO_PIN   3                 // 서보모터 Pin 번호
#define BUZZER_PIN  4                 // 피에조 부저 Pin 번호

#define EFFECT_WAKE_UP    1           // 부저 효과음 - 입력 활성화
#define EFFECT_UNLOCK     2           // 잠금해제
#define EFFECT_KEY_ERR    3           // 키 오류
#define EFFECT_INPUT_NUM  4           // 키 입력

// 객체 선언
IRrecv ir(IR_PIN);
Servo servo;
U8GLIB_SSD1306_128X64 u8g(U8G_I2C_OPT_DEV_0 | U8G_I2C_OPT_NO_ACK | U8G_I2C_OPT_FAST);

// IR 리모컨 신호 리스트
long irSignalList[] = {
  167124451672876516732845,
  1673845516750695167568151672417516718055,
  1674304516716015167262151673488516730805,
};

// IR 신호별 문자 리스트
String irCharList[] = {
  "OK""*""#",
  "1""2""3""4""5""6""7""8""9""0",
};


bool isWakeup, isLock;            // 입력 활성화, 잠금 상태 값
String receiveStr = "";           // IR 신호 문자 값
String inputStr = "";             // 입력 키 값
long inputTime;                   // 입력 동작 시간
long timeOut = 1000 * 10;         // 입력 종료 시간

String unlockStr = "2021";        // 잠금해제 키 값

void setup() {
  Serial.begin(115200);
  u8g.begin();                                // OLED 모듈 활성화
  servo.attach(SERVO_PIN, 0180);            // 서보 모터 초기화

  pinMode(BUZZER_PIN, OUTPUT);                // 부저 모듈 Pin 모드 설정

  servo.write(0);                             // 서보모터 초기 각도 제어
  ir.enableIRIn();                            // IR 수신 활성화

  showLockState();                            // 잠금상태 OLED 출력
}

void loop() {
  irReceiver();                               // IR 신호 수신
  setLockStatus();                            // 잠금 상태 설정

  // 입력 가능 시간 체크
  if (isWakeup && millis() - inputTime > timeOut) {           // 입력이 활성화된 상태에서 지정 시간만큼 시간이 지나면
    isWakeup = false;                                               // 입력 비활성화 상태로 전환
    inputStr = "";                                                  // 입력 키 정보 초기화
    showLockState();                                                // 잠금상태 OLED 출력
  }
  delay(50);
}

// 잠금 상태 설정 함수
void setLockStatus() {
  if (receiveStr != "") {                                 // 지정된 문자에 대한 IR 신호 수신 시,
    if (receiveStr.equals("*")) {                                     // "*" 문자 수신 시, 입력 활성화 설정
      isWakeup = !isWakeup;                                                     // 입력 활성화 상태 변경
      inputStr = "";                                                            // 입력 키 정보 초기화
      isWakeup ? showInputNumber() : showLockState();                           // 활성화 상태에 따른 OLED 정보 출력
      soundEffect(EFFECT_WAKE_UP);                                              // 입력 활성화 효과음 출력

    } else if (receiveStr.equals("#"&& isLock) {                    // "#" 문자 수신 및 잠금해제 상태 시, 잠금 설정
      servo.write(0);                                                           // 서보 모터 각도 초기화
      isLock = isWakeup = false;                                                // 잠금 상태, 입력 비활성화 상태 설정
      showLockState();                                                          // 잠금상태 OLED 출력

    } else if (isWakeup) {                                            // 입력 활성화 상태 시,
      inputStr += receiveStr;                                                   // 입력 키 정보에 IR 신호 문자 추가
      showInputNumber();                                                        // 입력 키 정보 OLED 출력
      soundEffect(EFFECT_INPUT_NUM);                                            // 키 입력 효과음 출력

      if (inputStr.length() == 4) {                                             // 4자리 키 정보 입력 시,
        delay(300);
        if (inputStr.equals(unlockStr)) {                                               // 잠금해제 키 정보와 일치할 경우,
          isLock = true;                                                                      // 잠금 해제 상태로 설정
          isWakeup = false;                                                                   // 입력 비활성화 설정
          soundEffect(EFFECT_UNLOCK);                                                         // 잠금 해제 효과음 출력
          showLockState();                                                                    // 잠금상태 OLED 출력
          servo.write(180);                                                                   // 서보 모터 각도 제어

        } else {                                                                        // 잠금해제 키 정보와 불일치할 경우,
          inputStr = "";                                                                      // 입력 키 정보 초기화
          soundEffect(EFFECT_KEY_ERR);                                                        // 키 오류 효과음 출력
          showInputNumber();                                                                  // 입력 키 정보 OLED 출력
        }
      }
    }
    inputTime = millis();                                    // 입력 시작 시간 초기화
    receiveStr = "";                                         // IR 수신 문자 초기화
  }
}

// 입력 키 정보 OLED 출력 함수
void showInputNumber() {
  u8g.firstPage();
  do {
    u8g.setFont(u8g_font_unifont);                            // 폰트 설정
    u8g.undoScale();                                          // 폰트 스케일 초기화
    u8g.drawStr(1416"INPUT NUMBER");                      // 텍스트(Title) 출력
    u8g.setScale2x2();                                        // 폰트 스케일 증가
    String showNum = "";
    for (int i = 0; i < inputStr.length(); i++) {                         // 입력 키 문자열 길이만큼 반복문 실행
      showNum += i > 0 ? " " + String(inputStr[i]) : inputStr[i];             // 첫번째 문자 이후부터 공백 " " 추가
    }
    u8g.drawStr(326, showNum.c_str());                      // 입력 키 정보 출력
  } while ( u8g.nextPage() );
}

// 잠금 상태 정보 OLED 출력 함수
void showLockState() {
  u8g.firstPage();
  do {

    u8g.setFont(u8g_font_unifont);                            // 폰트 설정
    u8g.undoScale();                                          // 폰트 스케일 초기화
    u8g.drawStr(3816"IR LOCK");                           // 텍스트(Title) 출력
    u8g.setScale2x2();                                        // 폰트 스케일 증가
    if (isLock) {                                             // 잠금 상태에 따른 텍스트 출력
      u8g.drawStr(1626"OPEN");
    } else {
      u8g.drawStr(1226"CLOSE");
    }
  } while ( u8g.nextPage() );
}

// IR 신호 수신 함수
void irReceiver() {
  decode_results res;
  if (ir.decode(&res))                                          // IR 신호 수신 시,
  {
    if (res.decode_type == 3 && res.bits == 32) {                        // 지정 IR 타입 및 크기(32Bit)의 신호 수신 시,
      int irPos = -1;
      for (int i = 0; i < sizeof(irSignalList); i++) {                   // IR 리모컨 신호 리스트에서 해당 신호의 인덱스 검출
        if (res.value == irSignalList[i]) {
          irPos = i;
          break;
        }
      }
      receiveStr = irPos != -1 ? irCharList[irPos] : "";                 // IR 신호 리스트의 인덱스 기준 IR 문자 호출 및 저장
    }
    ir.resume();                                                // IR 신호 수신 대기
  }
}

// 피에조 부저 효과음 출력 함수
void soundEffect(int type) {
  if (type == EFFECT_WAKE_UP) {                                 // 입력 활성화 효과음
    digitalWrite(BUZZER_PIN, HIGH);
    delay(100);
    digitalWrite(BUZZER_PIN, LOW);
    delay(50);
    digitalWrite(BUZZER_PIN, HIGH);
    delay(100);
    digitalWrite(BUZZER_PIN, LOW);
  } else if (type == EFFECT_UNLOCK) {                           // 잠금 해제 효과음
    digitalWrite(BUZZER_PIN, HIGH);
    delay(300);
    digitalWrite(BUZZER_PIN, LOW);
    delay(50);
    digitalWrite(BUZZER_PIN, HIGH);
    delay(100);
    digitalWrite(BUZZER_PIN, LOW);
    delay(50);
    digitalWrite(BUZZER_PIN, HIGH);
    delay(100);
    digitalWrite(BUZZER_PIN, LOW);
  } else if (type == EFFECT_KEY_ERR) {                           // 입력 키 오류 효과음
    digitalWrite(BUZZER_PIN, HIGH);
    delay(500);
    digitalWrite(BUZZER_PIN, LOW);
  } else {                                                       // 키 입력 효과음
    digitalWrite(BUZZER_PIN, HIGH);
    delay(100);
    digitalWrite(BUZZER_PIN, LOW);
  }
}
