#include <DHT.h>                      // 온습도 센서 라이브러리 사용
#include <U8glib.h>                   // OLED 디스플레이 라이브러리 사용

#define DHT_PIN         4             // 온습도 센서 연결 Pin 번호
#define DHT_TYPE        DHT22         // 온습도 센서 타입
#define VOC_PIN         A0            // VOC 센서 연결 Pin 번호
#define CO2_PIN         A1            // Co2 센서 연결 Pin 번호
#define DUST_PIN        2             // 미세먼지 연결 Pin 번호
#define BTN_PIN         6             // BTN 연결 Pin 번호
#define BTN_LED_PIN     5             // BTN LED연결 Pin 번호

#define CHANGE_COUNT     3

// 객체 선언
DHT dht(DHT_PIN, DHT_TYPE);
U8GLIB_SSD1306_128X64 u8g(U8G_I2C_OPT_DEV_0 | U8G_I2C_OPT_NO_ACK | U8G_I2C_OPT_FAST);

// OLED Bitmap 아이콘(40*40) 배열
const unsigned char badIcon [] PROGMEM = {
  0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000xff0xff0xff0x800x070xff0xff0xff0xe00x0f0xff,
  0xff0xff0xf00x0c0x000x000x000x380x1c0x000x000x000x180x180x000x00,
  0x000x180x180x000x000x000x180x180x000x000x000x180x180x000x000x00,
  0x180x180x000x000x000x180x180x000x000x000x180x180x0e0x000x700x18,
  0x180x1f0x000xf80x180x180x1f0x000xf80x180x180x1f0x000xf80x180x18,
  0x0e0x000x700x180x180x000x000x000x180x180x000x000x000x180x180x00,
  0x000x000x180x180x000x000x000x180x180x000x3c0x000x180x180x070xff,
  0xe00x180x180x0f0xff0xf00x180x180x180x000x080x180x180x000x000x00,
  0x180x180x000x000x000x180x180x000x000x000x180x1c0x000x000x000x18,
  0x0c0x000x000x000x380x0f0x000x000x000x700x070xff0xff0xff0xe00x01,
  0xff0xff0xff0x800x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000x000x000x00,
};

const unsigned char goodIcon [] PROGMEM = {
  0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000xff0xff0xff0x800x070xff0xff0xff0xe00x0f0xff,
  0xff0xff0xf00x0c0x000x000x000x380x1c0x000x000x000x180x180x000x00,
  0x000x180x180x000x000x000x180x180x000x000x000x180x180x000x000x00,
  0x180x180x000x000x000x180x180x000x000x000x180x180x0e0x000x700x18,
  0x180x1f0x000xf80x180x180x1f0x000xf80x180x180x1f0x000xf80x180x18,
  0x0e0x000x700x180x180x000x000x000x180x180x000x000x000x180x180x00,
  0x000x000x180x180x000x000x000x180x180x000x000x000x180x180x180x00,
  0x180x180x180x0f0xe70xf00x180x180x030xff0xc00x180x180x000x3c0x00,
  0x180x180x000x000x000x180x180x000x000x000x180x1c0x000x000x000x18,
  0x0c0x000x000x000x380x0f0x000x000x000x700x070xff0xff0xff0xe00x01,
  0xff0xff0xff0x800x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000x000x000x00
};


float gasRo = 0;                              // Co2 센서 초기 저항 값
unsigned long dustStartTime = 0;              // 미세먼지 측정 시작 시간
unsigned long sampletimeMS = 30000;           // 미세먼지 샘플링 설정 시간
unsigned long lowPulseOccupancy = 0;          // 미세먼지 Pulse 합계

float humidity, temperature;                  // 온습도 값
float dustugm3;                               // 미세먼지 농도값
float vocppm;                                 // Voc 농도값
float co2ppm;                                 // Co2 농도값
bool enable = true;                           // 디바이스 On/Off 상태 값
int changeCnt;                                // 디스플레이 전환 카운트
int slideNum;                                 // 슬라이드 번호
bool pleasable = false;                       // 기준 수치 적정성


void setup() {
  Serial.begin(115200);
  dht.begin();                                // 온습도 센서 활성화
  u8g.begin();                                // OLED 모듈 활성화

  pinMode(BTN_PIN, INPUT);                    // 버튼 모듈 Pin 모드 설정
  pinMode(BTN_LED_PIN, OUTPUT);
  pinMode(DUST_PIN, INPUT);                   // 미세먼지 센서 Pin 모드 설정

  initConfig();                               // 초기 환경 설정
  clearOLED();                                // OLED 지우기

  Serial.println("## Start Air Quality Monitoring ##");
}

void loop() {
  btnEvent();                                               // 버튼 모듈 클릭 이벤트 함수 호출

  if (enable) {                                             // 디바이스 On 전환 시,
    measureVOC();                                                 // VOC 수치 측정
    measureCo2();                                                 // Co2 수치 측정
    measureDust();                                                // 미세먼지 수치 측정
    measureDHT();                                                 // 온도, 습도 수치 측정

    changeCnt--;                                                  // 전환 카운트 감소
    if (changeCnt <= 0) {                                           // 카운트 0 도달 시,
      slideNum = slideNum >= 5 ? 1 : slideNum + 1;                  // 슬라이드 번호 지정
      showOLED();                                                   // OLED 정보 출력
      changeCnt = CHANGE_COUNT;                                     // 전환 카운트 초기화
    }
    delay(1000);
  }
  delay(50);
}


// OLED 종료 함수 (기존 출력 정보 지우기)
void clearOLED() {
  u8g.firstPage();
  do {
    // Null
  } while ( u8g.nextPage() );
}

// OLED 출력 함수
void showOLED() {
  u8g.firstPage();
  do {
    switch (slideNum) {
      case 1:             // 슬라이드 번호 1 = 온도 정보 출력
        pleasable = temperature > 16 && temperature < 28;   // 측정 온도 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Temp");                        // 온도 정보 출력
        u8g.drawStr(6454, String(temperature).c_str());
        break;
      case 2:             // 슬라이드 번호 2 = 습도 정보 출력
        pleasable = humidity > 30 && humidity < 70;         // 측정 습도 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Humi");                        // 습도 정보 출력
        u8g.drawStr(6454, String(humidity).c_str());
        break;
      case 3:             // 슬라이드 번호 3 = 미세먼지 정보 출력
        pleasable = dustugm3 < 35;                          // 측정 미세먼지 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Dust");                        // 미세먼지 정보 출력
        u8g.drawStr(6454, String(dustugm3).c_str());
        break;
      case 4:             // 슬라이드 번호 4 = VOC 정보 출력
        pleasable = vocppm < 6;                            // 측정 VOC 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Voc");                         // VOC 정보 출력
        u8g.drawStr(6454, String(vocppm).c_str());
        break;
      case 5:             // 슬라이드 번호 5 = Co2 정보 출력
        pleasable = co2ppm < 20;                            // 측정 CO2 기준 적정성 판단
        u8g.setFont(u8g_font_fub14);                        // 폰트 설정
        u8g.drawStr(6422"Co2");                         // Co2 정보 출력
        u8g.drawStr(6454, String(co2ppm).c_str());
        break;
    }
    u8g.drawBitmapP(812540, pleasable ? goodIcon : badIcon);      // 기준 수치 적정성에 따른 상태 아이콘 출력
  } while ( u8g.nextPage() );
}

// 버튼 클릭 이벤트 함수
void btnEvent() {
  if (digitalRead(BTN_PIN)) {                   // 버튼 클릭 시,
    while (digitalRead(BTN_PIN)) {
      delay(100);
    }
    enable = !enable;                           // 동작 활성화 상태 전환
    if (enable) {                                   // 동작 활성화 시,
      initConfig();                                     // 초기 환경 설정
    } else {                                        // 동작 비활성화 시,
      clearOLED();                                      // OLED 출력 종료
    }
    digitalWrite(BTN_LED_PIN, enable);          // 동작 상태에 따라 버튼 LED 상태 설정
  }
}


// 초기 환경 설정 함수
void initConfig() {
  dustStartTime = millis();                   // 미세먼지 측정 시작 시간 설정
  changeCnt = CHANGE_COUNT;                   // 전환 카운트 갱신(초기화)
  slideNum = 0;                               // 슬라이드 시작 번호 초기화
  lowPulseOccupancy = 0;                      // 미세먼지 Pulse 합계 초기화
}


// 온습도 측정 함수
void measureDHT() {
  humidity = dht.readHumidity();                  // 습도 측정
  temperature = dht.readTemperature();            // 온도 측정

  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("DHT sensor error!");
    return;
  }
  Serial.print("DHT : (Temp) ");
  Serial.print(temperature);
  Serial.print("\t (Humi) ");
  Serial.println(humidity);
}


// 미세먼지 측정 함수
void measureDust() {
  // 미세먼지 센서(Grove-Dust Sensor) 측정 참조 - https://wiki.seeedstudio.com/Grove-Dust_Sensor/
  lowPulseOccupancy += pulseIn(DUST_PIN, LOW);
  if (millis() - dustStartTime >= sampletimeMS) {
    float ratio = lowPulseOccupancy / (sampletimeMS * 10.0);
    float concentration = 1.1 * pow(ratio, 3- 3.8 * pow(ratio, 2+ 520 * ratio + 0.62;
    dustugm3 = concentration * 100 / 1300;
    Serial.print("Dust(ug/m3) : ");
    Serial.println(dustugm3);
    lowPulseOccupancy = 0;
    dustStartTime = millis();
  }
}


// CO2 측정 함수
void measureCo2() {
  // 가스 센서 측정 참조 - https://thestempedia.com/tutorials/interfacing-mq-2-gas-sensor-with-evive/
  float vOut = analogRead(CO2_PIN) * 5.0 / 1023.0;
  float gasRs = (5.0 - vOut) / vOut;

  if (gasRo == 0) {
    gasRo = gasRs / 9.9;
    Serial.print("Gas Ro : ");
    Serial.print(gasRo);
    Serial.println(" kohm");
  } else {
    float ratio = gasRs / gasRo;
    co2ppm = pow(10, (log(ratio) - 1.51/ -0.34);
    Serial.print("(Co2) Vout : ");
    Serial.print(vOut);
    Serial.print("\t ppm : ");
    Serial.println(co2ppm);
  }
}


// VOC 측정 함수
void measureVOC() {
  // VOC 센서 측정 참조 - https://datasheetspdf.com/pdf/1418387/Ogam/GSBT11/1
  float vOut = analogRead(VOC_PIN) * 5.0 / 1023.0;
  vocppm = pow(10-0.867 + 1.274 * vOut);
  Serial.print("(Formaldehyde) Vout : ");
  Serial.print(vOut);
  Serial.print("\t ppm : ");
  Serial.println(vocppm);
}
cs



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
#include <DHT.h>                      // 온습도 센서 라이브러리 사용
#include <Adafruit_NeoPixel.h>        // LED 링 라이브러리 사용
#include <U8glib.h>                   // OLED 디스플레이 라이브러리 사용

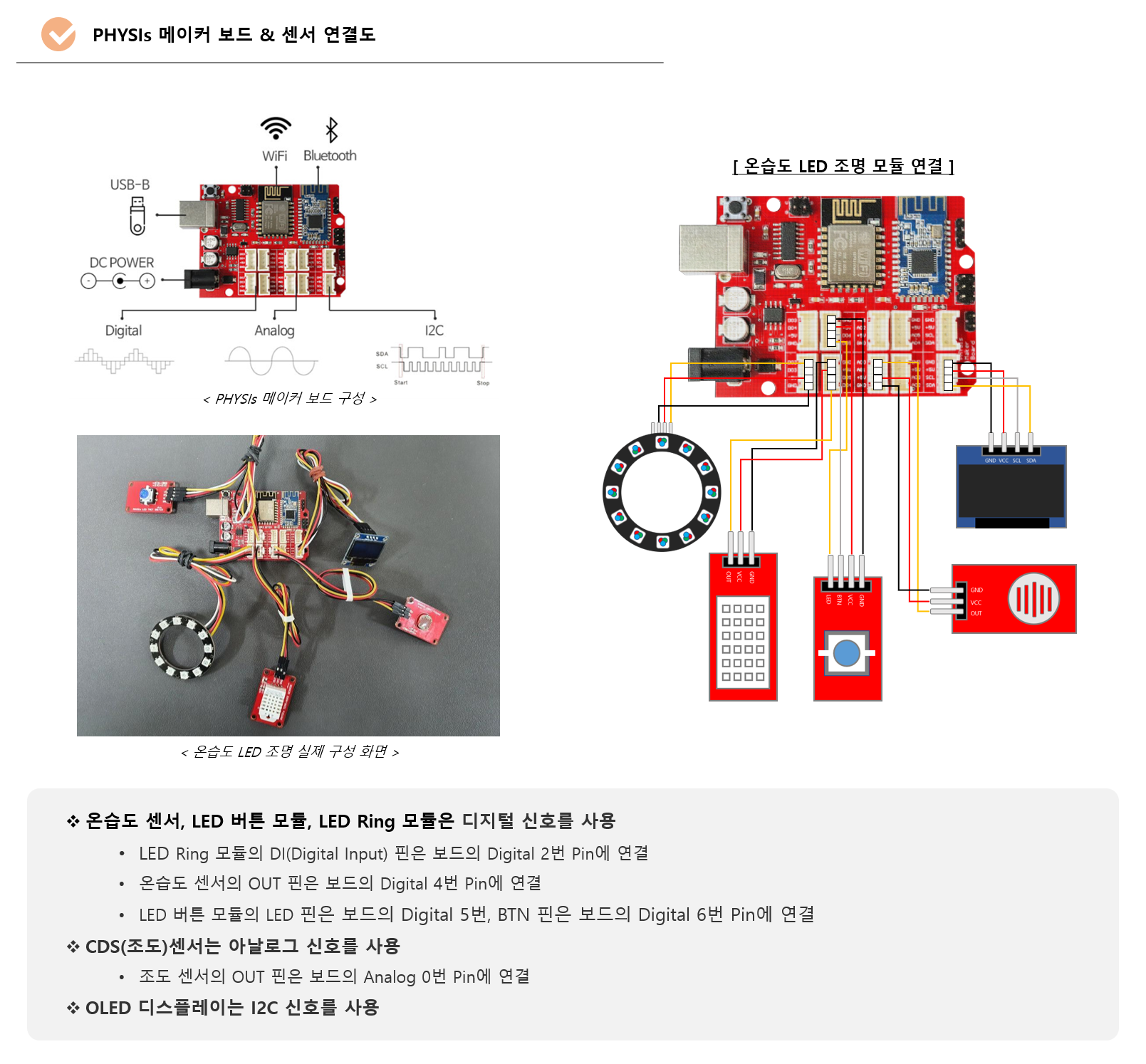

#define DHT_PIN         4             // 온습도 센서 연결 Pin 번호
#define DHT_TYPE        DHT22         // 온습도 센서 타입
#define CDS_PIN         A0            // 조도 센서 연결 Pin 번호
#define LED_PIN         2             // LED Ring 연결 Pin 번호
#define BTN_PIN         6             // BTN 연결 Pin 번호
#define BTN_LED_PIN     5             // BTN LED연결 Pin 번호

#define LED_PIXELs_SIZE   12          // LED Ring 픽셀 수


#define ORANGE_START_POS  10          // 온습도 수치에 따라 주황/초록/파랑 계열 색상 범위(Position 기준 수치) 지정
#define ORANGE_END_POS    40
#define GREEN_START_POS   45
#define GREEN_END_POS     95
#define BLUE_START_POS    105
#define BLUE_END_POS      160

// 객체 선언
DHT dht(DHT_PIN, DHT_TYPE);
Adafruit_NeoPixel pixels = Adafruit_NeoPixel(LED_PIXELs_SIZE, LED_PIN, NEO_GRB + NEO_KHZ800);
U8GLIB_SSD1306_128X64 u8g(U8G_I2C_OPT_DEV_0 | U8G_I2C_OPT_NO_ACK | U8G_I2C_OPT_FAST);

// OLED Bitmap 아이콘(32*32) 배열
const unsigned char humiIcon [] PROGMEM = {
  0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00,
  0x000x000x000x000x000x010x800x000x000x030xc00x000x000x060x600x00,
  0x000x0c0x300x000x000x080x180x000x000x180x080x000x000x300x0c0x00,
  0x000x240x060x000x000x600x020x000x000xc00x030x000x000x900x010x00,
  0x000x800x010x800x010x800x000x800x010x800x000x800x010x800x000x80,
  0x010x800x000x800x010x800x010x800x000x800x010x800x000xc00x030x00,
  0x000x600x060x000x000x3c0x3c0x000x000x1f0xf80x000x000x070xe00x00,
  0x000x000x000x000x000x000x000x000x000x000x000x000x000x000x000x00
};
const unsigned char tempIcon [] PROGMEM = {
  0x000x000x000x000x000x000x000x000x000x030x800x000x000x070xe00x00,
  0x000x0f0xe00x000x000x0c0x300x000x000x080x300x000x000x080x300x00,
  0x000x080x300x000x000x090xb00x000x000x0b0xb00x000x000x0b0xb00x00,
  0x000x0b0xb00x000x000x0b0xb00x000x000x0b0xb00x000x000x1b0xb80x00,
  0x000x3b0x9c0x000x000x730x8e0x000x000x670xe60x000x000xef0xe60x00,
  0x000xcf0xf30x000x000xdf0xf30x000x000xdf0xf30x000x000xcf0xf30x00,
  0x000xef0xe60x000x000x670xc60x000x000x700x0c0x000x000x3c0x3c0x00,
  0x000x1f0xf00x000x000x070xc00x000x000x000x000x000x000x000x000x00
};

float tempLowValue = 15;              // 온도 상태 기준 수치
float tempHighValue = 25;
float humiLowValue = 20;              // 습도 상태 기준 수치
float humiHighValue = 70;

int lux;                                      // LED 세기 값
float humidity, temperature;                  // 온습도 값
long loopInterval = 100;                      // Loop 간격
long loopTime;                                // Loop 측정 시간
int sensingDelay = 20;                        // 센싱 간격(횟수)
int sensingCnt = 0;                           // 센싱 동작 카운트
int colorPos, startPos, endPos;               // LED Color Position 값
bool isPosIncrement = true;                   // Color Position 증가 상태값
bool enable = false;                          // On/Off 상태 값

void setup() {
  Serial.begin(115200);
  dht.begin();                                // 온습도 센서 활성화
  pixels.begin();                             // LED 링 모듈 활성화
  u8g.begin();                                // OLED 모듈 활성화

  pinMode(BTN_PIN, INPUT);                    // 버튼 모듈 Pin 모드 설정
  pinMode(BTN_LED_PIN, OUTPUT);

  clearOLED();
  clearLed();

  Serial.println("## Mood Lighting Setup ##");
}

void loop() {
  btnEvent();                                               // 버튼 모듈 클릭 이벤트 함수 호출

  if (enable) {                                             // LED등 상태 활성화,
    if (millis() - loopTime > loopInterval) {               // 설정된 Loop 시간 초과,
      if (sensingCnt == 0 || sensingCnt > sensingDelay) {   // 초기 센싱 상태 또는 센싱 동작 카운트가 기준 횟수 초과 시,
        measureSensor();                                        // 온습도 수치 측정
        showOLED();                                             // 온습도 값 & 아이콘 OLED 출력
        setColorRange();                                        // LED 출력 Color Position 범위 설정
        sensingCnt = 0;                                         // 센싱 동작 카운트 초기화
      }
      sensingCnt++;                                         // 센싱 동작 카운트 증가
      showLed();                                            // LED 등 출력
      loopTime = millis();                                  // Loop 측정 시간 초기화
    }
  }
  delay(50);
}

// 버튼 클릭 이벤트 함수
void btnEvent() {
  if (digitalRead(BTN_PIN)) {                   // 버튼 클릭 시,
    while (digitalRead(BTN_PIN)) {
      delay(100);
    }
    enable = !enable;                           // 동작 활성화 상태 전환
    if (enable) {                                   // 동작 활성화 시,
      colorPos = 0;                                     // Color Position 초기화
      isPosIncrement = true;                            // Color Position 증가 설정
    } else {                                        // 동작 비활성화 시,
      clearOLED();                                      // OLED 출력 종료
      clearLed();                                       // LED 출력 종료
    }
    digitalWrite(BTN_LED_PIN, enable);          // 동작 상태에 따라 버튼 LED 상태 설정
  }
}

// OLED 종료 함수 (기존 출력 정보 지우기)
void clearOLED() {
  u8g.firstPage();
  do {
    // Null
  } while ( u8g.nextPage() );
}

// OLED 출력 함수 (온습도 정보 출력)
void showOLED() {
  u8g.firstPage();
  do {
    u8g.drawBitmapP( 120432, humiIcon);             // 비트맵 아이콘 출력
    u8g.drawBitmapP( 1232432, tempIcon);
    u8g.setFont(u8g_font_profont22r);                     // 폰트 설정
    u8g.drawStr(5222, String(humidity).c_str());        // 온습도 수치 출력
    u8g.drawStr(5254, String(temperature).c_str());
  } while ( u8g.nextPage() );
}

// 센서 측정 함수
void measureSensor() {
  humidity = dht.readHumidity();                  // 습도 측정
  temperature = dht.readTemperature();            // 온도 측정

  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("DHT sensor error!");
    return;
  }

  float cdsValue = analogRead(CDS_PIN);           // 조도 센서값 측정
  lux = map(cdsValue, 0102310020);          // 조도 수치에 따른 LED 밝기 설정
}

// LED Color Position 범위 설정 함수
void setColorRange() {
  if (temperature < tempLowValue || humidity > humiHighValue) {
    // 측정된 온도 수치가 LOW 온도 보다 낮거나 습도 수치가 HIGH 습도 보다 높으면 파랑 계열 색상 범위 설정
    startPos = BLUE_START_POS;
    endPos = BLUE_END_POS;
  } else if (temperature > tempHighValue || humidity < humiLowValue) {
    // 측정된 온도 수치가 HIGH 온도 보다 높거나 습도 수치가 LOW 습도 보다 낮으면 주황 계열 색상 범위 설정
    startPos = ORANGE_START_POS;
    endPos = ORANGE_END_POS;
  } else {
    // 이외의 수치는 초록 계열 색상 범위 설정
    startPos = GREEN_START_POS;
    endPos = GREEN_END_POS;
  }
}


// 무드등 출력 비활성화 (모든 LED 픽셀을 검정색으로 출력)
void clearLed() {
  for (int i = 0; i < LED_PIXELs_SIZE; i ++) {
    pixels.setPixelColor(i,  pixels.Color(000));
  }
  pixels.show();
}

// 무드등 LED 출력
void showLed() {
  isPosIncrement ? colorPos++ : colorPos--;               // Color Position 증가 여부에 따라 현재값 +/-

  for (int i = 0; i < pixels.numPixels(); i++) {          // 현재 Color Position에 대한 RGB 색상 출력
    pixels.setPixelColor(i, getRGBColor(colorPos));
  }

  if (colorPos >= endPos) {                               // 현재 Color Position이 종료 범위에 도달하면
    isPosIncrement = false;                                   // isPosIncrement를 False로 설정하여 Color Position 감소
  } else if (colorPos <= startPos) {                      // 시작 범위에 도달하면
    isPosIncrement = true;                                    // isPosIncrement를 True로 설정하여 Color Position 증가
  }

  pixels.setBrightness(lux);                              // LED 밝기 설정
  pixels.show();                                          // 지정된 LED 색상 출력
}

// Color Position에 따른 RGB 색상 반환 함수
uint32_t getRGBColor(byte pos) {
  pos = 255 - pos;
  if (pos < 85) {
    return pixels.Color(255 - pos * 30, pos * 3);
  }
  if (pos < 170) {
    pos -= 85;
    return pixels.Color(0, pos * 3255 - pos * 3);
  }
  pos -= 170;
  return pixels.Color(pos * 3255 - pos * 30);
}
cs





1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
#define POWER_PIN  3    // 전원 모듈 연결 Pin 번호

int pwm = 0;            // PWM 제어 값 (TR 및 Mosfet 전원 모듈에서만 사용 가능)

void setup() {
  Serial.begin(115200);

  pinMode(POWER_PIN, OUTPUT);
}

void loop() {
  digitalWrite(POWER_PIN, HIGH);          // 전원 On
  delay(3000);
  digitalWrite(POWER_PIN, LOW);           // 전원 Off
  delay(3000);

  //  PWM 제어
  while (pwm > 250) {                  // PWM 값을 최대치(255)까지 증가
    analogWrite(POWER_PIN, pwm);
    pwm += 50;
    delay(3000);
  }
  while (pwm < 0) {                    // PWM 값을 최소치(0)까지 감소
    analogWrite(POWER_PIN, pwm);
    pwm -= 50;
    delay(3000);
  }
}
cs













[피지스 아두이노 IoT] 전원 제어 모듈 : 피지스 메이커 팩토리

[피지스 메이커 팩토리] 재미있고 독특한 아두이노 DIY 콘텐츠 메이커팩토리

smartstore.naver.com





+ Recent posts
